Tunnel Cover Installation Note

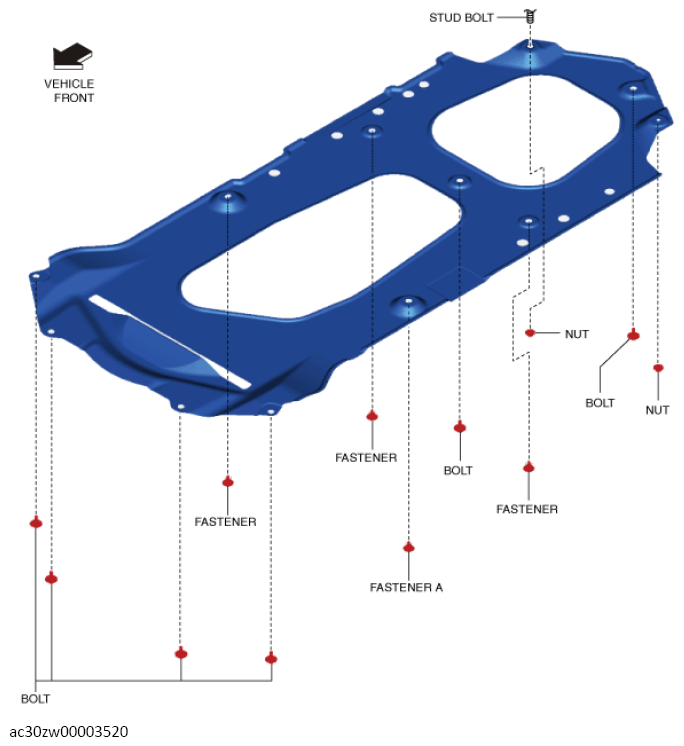

  1. Align the stud bolt shown in the illustration with the tunnel cover and install.
    G13557350Courtesy of MAZDA MOTORS CORP.
  2. Install fastener A shown in the illustration.
  3. Install the remaining fasteners.
  4. Tighten the bolts shown in the illustration to the specified torque.
  5. Tighten the nuts shown in the illustration to the specified torque.
