Exhaust Manifold Installation Note

Temporarily tighten the exhaust manifold installation nuts (1) and (2) shown in the illustration by hand.

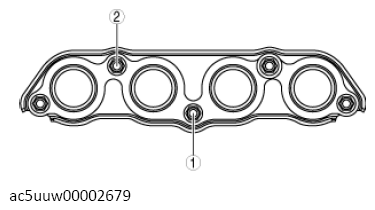

Fig 1: Exhaust Manifold Nuts Tightening Sequence (AWD)
Courtesy of MAZDA MOTORS CORP.
Tighten the exhaust manifold installation nuts (1) and (2) shown in the illustration.

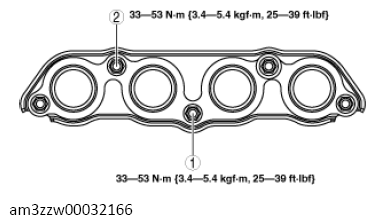

Fig 2: Exhaust Manifold Nuts With Torque Specification (AWD)
Courtesy of MAZDA MOTORS CORP.
Temporarily tighten the exhaust manifold installation nuts (3) to (5) shown in the illustration by hand.

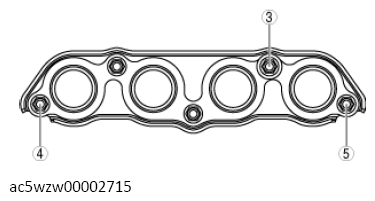

Fig 3: Exhaust Manifold Nuts Tightening Sequence (AWD)
Courtesy of MAZDA MOTORS CORP.
Tighten the exhaust manifold installation nuts (3) to (5) shown in the illustration.
Tighten the exhaust manifold installation nuts (1) and (2) shown in the illustration.
Temporarily tighten the bolts (6) and (7) shown in the illustration.

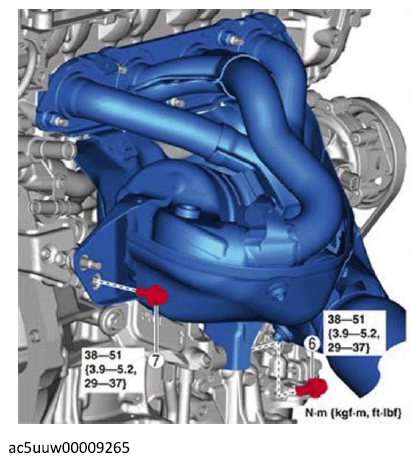

Fig 4: Exhaust Manifold Bolts With Torque Specification (AWD)
Courtesy of MAZDA MOTORS CORP.
Tighten the bolt (6) shown in the illustration.
Tighten the bolt (7) shown in the illustration.
