Telematics Communication Unit Inspection

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Passenger side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
  3. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US))
  4. Measure the voltage at each terminal.
    • If the voltage is not as specified in the terminal voltage table, inspect the parts under Inspection item(s) and related wiring harnesses.

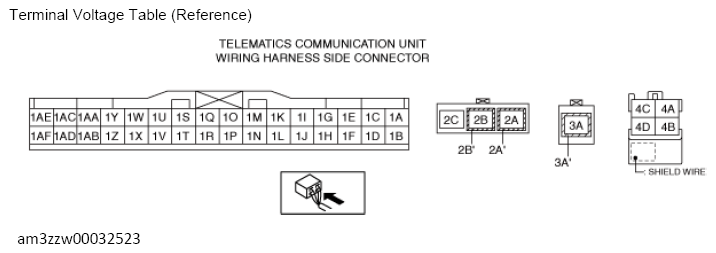

G13561229Courtesy of MAZDA MOTORS CORP.
Terminal Signal name Connected to Measurement conditions Voltage (V) Inspection item(s)
1A - - - - -
1B - - - - -
1C - - - - -
1D - - - - -
1E - - - - -
1F - - - - -
1G - - - - -
1H - - - - -
1I - - - - -
1J - - - - -
1K - - - - -
1L - - - - -
1M - - - - -
1N - - - - -
1O GND1 Body ground Under any condition Approx. 0
  • GND point
  • Related wiring harness
1P - - - - -
1Q HS CAN_H CAN system related module Because this terminal is for communication, determination using terminal voltage inspection is not possible.
1R GND3 Body ground Under any condition Approx. 0
  • GND point
  • Related wiring harness
1S HS CAN_L CAN system related module Because this terminal is for communication, determination using terminal voltage inspection is not possible.
1T GND4 Body ground Under any condition Approx. 0
  • GND point
  • Related wiring harness
1U GND2 Body ground Under any condition Approx. 0
  • GND point
  • Related wiring harness
1V - - - - -
1W - - - - -
1X - - - - -
1Y - - - - -
1Z - - - - -
1AA ENS2_IN SAS control module Because this terminal is for communication, determination using terminal voltage inspection is not possible.
1AB - - - - -
1AC ENS2_OUT Electrical supply unit (ESU) Because this terminal is for communication, determination using terminal voltage inspection is not possible.
1AD - - - - -
1AE IG1 F48 7.5A fuse Switch the ignition ON (engine on or off) B+
  • F48 7.5A fuse
  • Related wiring harness
Switch the ignition OFF (LOCK) 1.0 or less
1AF +B F46 15 A fuse Under any condition B+
  • F46 15 A fuse
  • Battery
  • Related wiring harness
2A TEL_SIG1 Tel antenna No. 1 Because this terminal is for communication, determination using terminal voltage inspection is not possible.
2B GNSS_SIG1 Tel antenna No. 1 Because this terminal is for communication, determination using terminal voltage inspection is not possible.
3A TEL_SIG2 Tel antenna No. 2 Because this terminal is for communication, determination using terminal voltage inspection is not possible.
4A USB1_GND Connectivity master unit Under any condition 1.0 or less
  • Connectivity master unit
  • Related wiring harness
4B USB1_DATA_P Connectivity master unit Because this terminal is for communication, determination using terminal voltage inspection is not possible.
4C USB1_VBUS Connectivity master unit Under any condition Approx. 5.0
  • Connectivity master unit
  • Related wiring harness
4D USB1_DATA_N Connectivity master unit Because this terminal is for communication, determination using terminal voltage inspection is not possible.
