Lower Panel Disassembly/Assembly (Us): Driver-side

  1. Disassemble in the order indicated in the table.

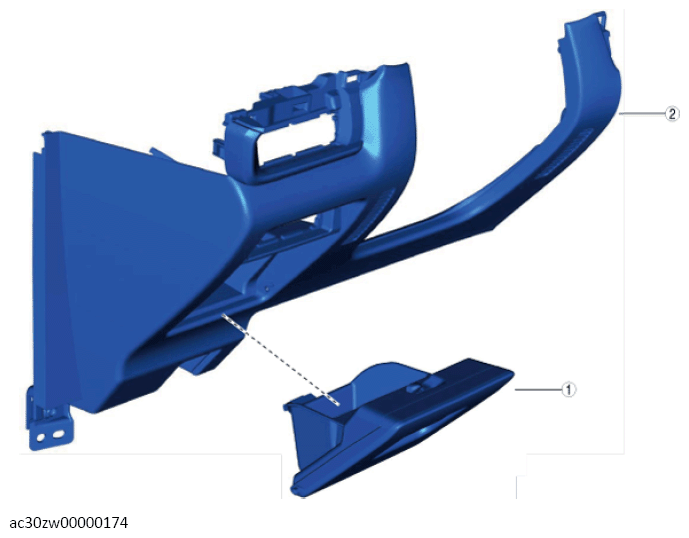

    G13560753Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Pocket
    2 Driver-side lower panel
  2. Assemble in the reverse order of disassembly.
