Front Console Box Removal/Installation

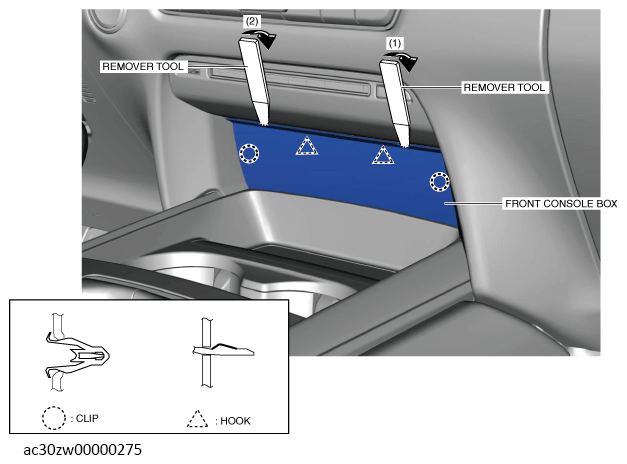

  1. Insert the remover tool into the positions shown in the illustration, move it in the order of arrows (1), (2) and detach the clips, hooks.
    G13560700Courtesy of MAZDA MOTORS CORP.

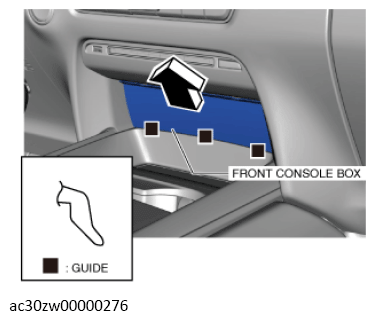

  2. Remove the front console box in the direction of arrow shown in the illustration while detaching the guides.
    G13560701Courtesy of MAZDA MOTORS CORP.
  3. Remove the front console box.
  4. Install in the reverse order of removal.
