Lower Column Cover

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
    6. Upper column cover (See UPPER COLUMN COVER .)

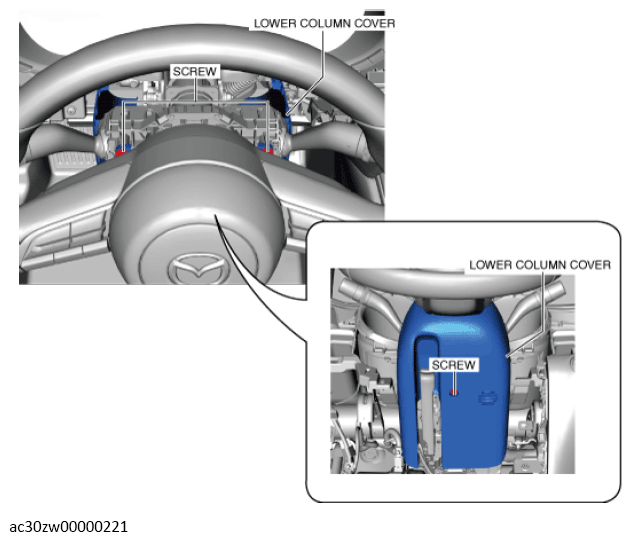

  3. Remove the screws.
    G13560638Courtesy of MAZDA MOTORS CORP.

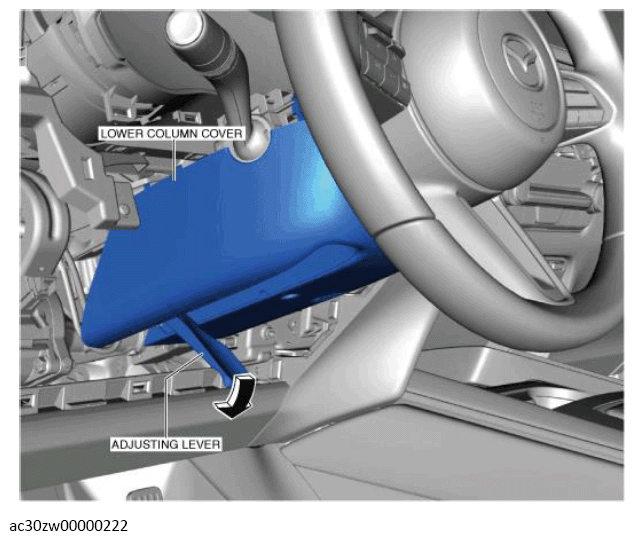

  4. Lower the adjusting lever to the bottommost position.
    G13560639Courtesy of MAZDA MOTORS CORP.

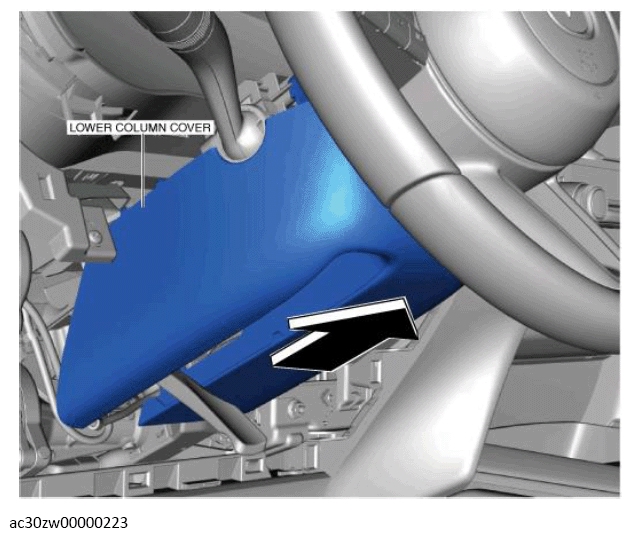

  5. Remove the lower column cover in the direction of the arrow shown in the illustration.
    G13560640Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the notification and warning speaker connector. (with notification and warning speaker)
  7. Install in the reverse order of removal.
    NOTE:
