DTC B12C1-01: Side Camera (RH) Circuit Malfunction (360° View Monitor Control Module): Outline

DTC B12C1:01 (360° VIEW MONITOR CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE

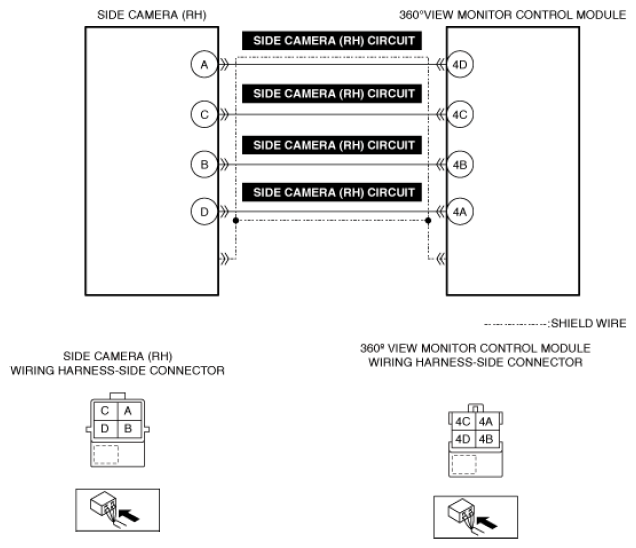

System malfunction location	Side camera (RH) circuit malfunction
Detection condition	The 360° VIEW monitor control module detects a malfunction in the side camera (RH) circuit for 5 s.
Fail-safe	(See DTC TABLE (360° VIEW MONITOR CONTROL MODULE (US)] .)
Possible cause	Side camera (RH) connector malfunction 360° VIEW monitor control module connector malfunction Short to ground in side camera (RH) circuit Short to power supply in side camera (RH) circuit Open circuit in side camera (RH) circuit Side camera (RH) malfunction 360° VIEW monitor control module malfunction
Courtesy of MAZDA MOTORS CORP.
