Ignition Coil/Ion Sensor Removal/Installation
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal

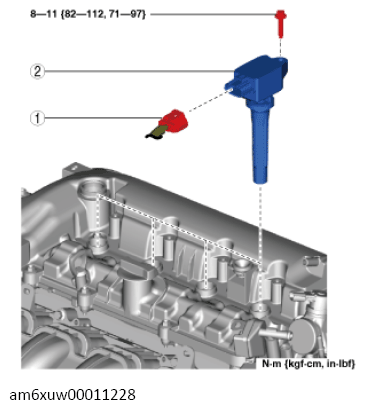

Fig 1: Ignition Coil/Ion Sensor Components With Torque Specification (SKYACTIV-G, With Cylinder Deactivation, US)
COMPONENT DESCRIPTION
| 1 | Connector |
| 2 | Ignition coil/ion sensor |
