Using center display

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch the ignition to ACC or ON (engine off or on).
  2. Display the display setting screen in the center display.
    • Select [Settings] on the center display.
    • Select [Screen] on the center display.
  3. Operate the center display in the following order.
    • Touch and hold the right upper area of the screen (area A in figure) until a beep is heard (approx. 5 s or more  ).
    • Touch and hold the left upper area of the screen (area B in figure) until a beep is heard (approx. 5 s or more  ).

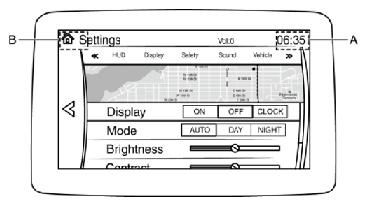

    Fig 1: Identifying Center Display
    G10913784Courtesy of MAZDA MOTORS CORP.


  1. Input the diagnostic assist code by pressing the "Diagnostic assist code input switch".
  2. Press "ENTER".
  3. Perform the inspection according to the diagnostic assist code list. (Refer to DIAGNOSTIC ASSIST CODE LIST .)
NOTE:
  • If [- REJECTED] is displayed, the inspection cannot be performed because communication is not enabled between the related parts, or the conditions are not met even if communication is enabled. Therefore, verify the display [- REJECTED] referring to the following procedure. (Refer to [- REJECTED] is displayed .)
