DTC B1087-87: Communication Error With Commander Switch: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
| Description |
Communication error with commander switch |
| Detection condition |
- The connectivity master unit (CMU) cannot receive a LIN signal from the commander switch for 5 s or more
with the ignition switched ACC or ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Commander switch connector or terminal malfunction
- Connectivity master unit (CMU) connector or terminal malfunction

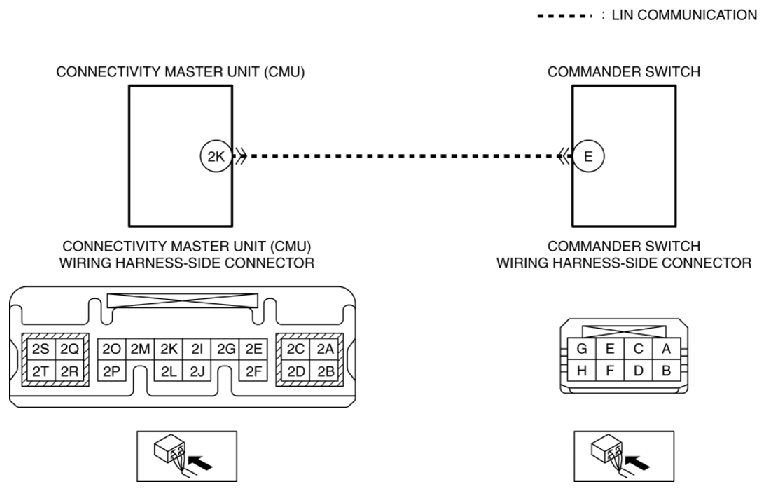

- Short to ground in wiring harness between connectivity master unit (CMU) terminal 2K and commander switch terminal E
- Short to power supply in wiring harness between connectivity master unit (CMU) terminal 2K and commander switch terminal E
- Open circuit in wiring harness between connectivity master unit (CMU) terminal 2K and commander switch terminal E
- Commander switch malfunction
- Connectivity master unit (CMU) malfunction
|
|
|
