Front Door Checker Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully close the front door glass.
  2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Power window main switch (Driver's side) (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
    2. Power window subswitch (Passenger's side) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
    3. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    4. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
  4. Remove the bolt.

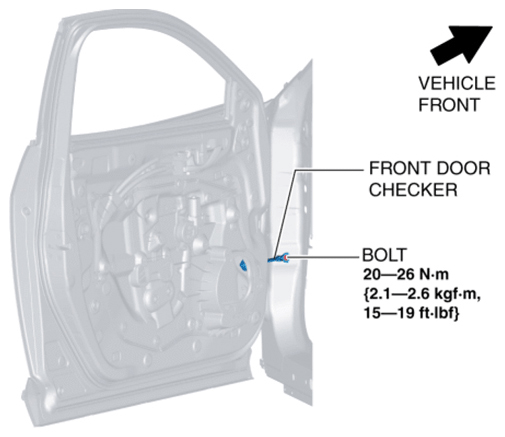

    Fig 1: Identifying Front Door Checker And Bolt With Torque Specification
    G10914055Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolts.

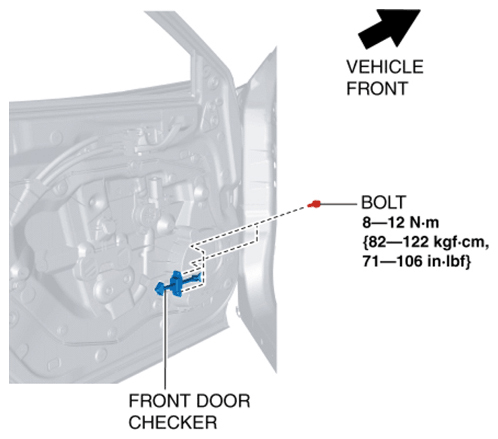

    Fig 2: Identifying Front Door Checker And Bolts With Torque Specification
    G10914056Courtesy of MAZDA MOTORS CORP.
  6. Pull out the front door checker from the front speaker installation hole.
  7. Install in the reverse order of removal.
