Steering Gear And Linkage Disassembly: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the steering gear and linkage. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION .)

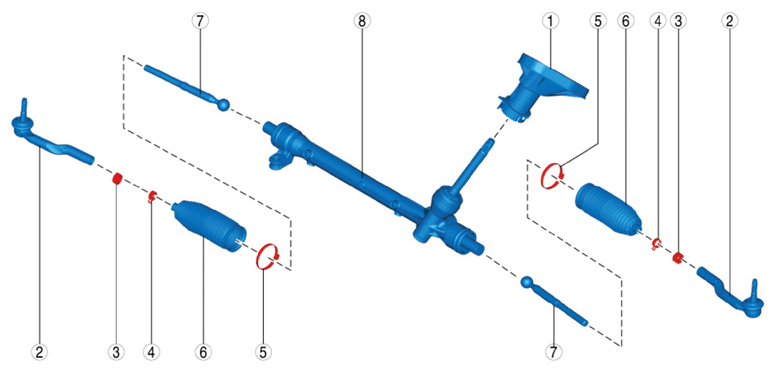

- Disassemble in the order indicated in the figure.
COMPONENT DESCRIPTION
| 1 | Dust cover (See Dust Cover Disassembly Note .) |
| 2 | Tie-rod end (See Tie-rod End Disassembly Note .) |
| 3 | Locknut |
| 4 | Boot clamp |
| 5 | Boot band (See Boot Band Disassembly Note .) |
| 6 | Boot |
| 7 | Tie Rod (See Tie Rod Disassembly Note .) |
| 8 | Steering gear |
