Tie Rod Assembly Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

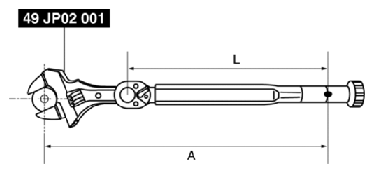

Install the SST to the torque wrench as shown in the figure, set it on the tie rod, and measure dimensions A and L shown in the figure.

Fig 1: Measuring Tie Rod Dimensions
Courtesy of MAZDA MOTORS CORP.

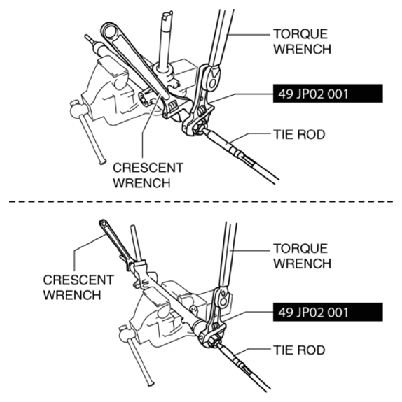

Tighten the tie rod after calculating the tightening torque using the following formula.

Fig 2: Tightening Tie Rod Using Torque Wrench
Courtesy of MAZDA MOTORS CORP.

Tightening torque
- 69-98 N.m {7.1-9.9 kgf.m, 51-72 ft.lbf}
Calculation formula
- Tx(L/A)
- T:Tightening torque (69-98 N.m {7.1-9.9 kgf.m, 51-72 ft.lbf})
- L:Torque wrench effective length
- A:Length from center of tie rod to grip
