Side Wall Removal/Installation: Driver-side

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Pull the side wall in the direction of the arrow in the order of (1), (2) and remove it while detaching hooks and clip.
CAUTION:
- If hooks and clip are removed forcefully, guide may be damaged. Carefully remove hooks and clip so as not to damage guide.

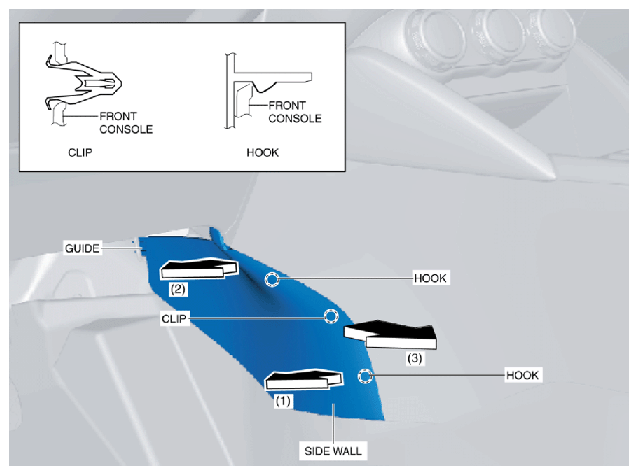

Fig 1: Pulling Side Wall - Driver-Side
Courtesy of ABLE BODY CORP.
Pull the side wall in the direction of the arrow (3) and remove it while detaching guide.
Install in the reverse order of removal.
