Front Scuff Plate Removal/Installation: Removal

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hold part A shown in the figure, open the front scuff plate in the direction of arrow (1), move it in the direction of arrow (2), and detach tab A of the front scuff plate from the front side trim.

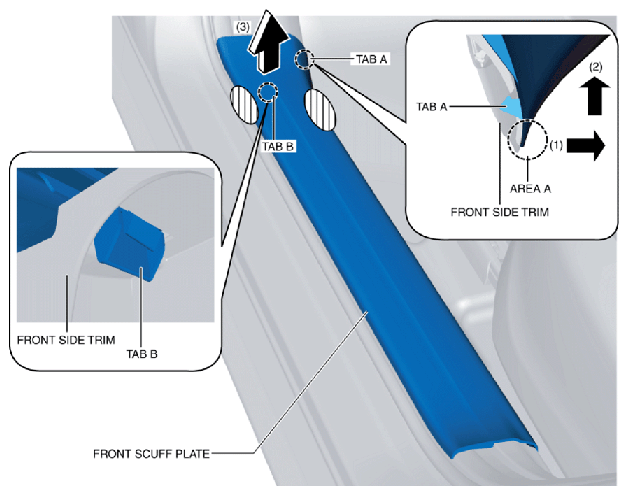

    Fig 1: Detaching Tab A Of Front Scuff Plate From Front Side Trim
    G10914789Courtesy of ABLE BODY CORP.
  2. Hold the shaded area shown in the figure, move the front scuff plate in the direction of arrow (3), and detach tab B of the front scuff plate from the front side trim.
  3. Hold part A shown in the figure, open the front scuff plate in the direction of arrow (1), move it in the direction of arrow (2), and detach tab A of the front scuff plate from the B-pillar lower trim.

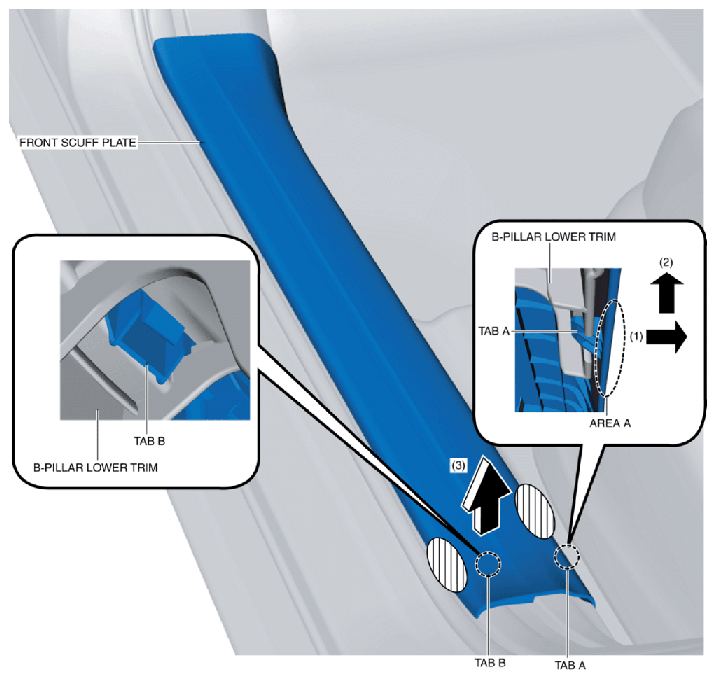

    Fig 2: Detaching Tab A Of Front Scuff Plate From B-Pillar Lower Trim
    G10914790Courtesy of ABLE BODY CORP.
  4. Hold the shaded area shown in the figure, move the front scuff plate in the direction of arrow (3), and detach tab B of the front scuff plate from the B-pillar lower trim.
  5. Hold the shaded area shown in the figure, move the front scuff plate in the direction of arrow (1), and detach the clips from the inner panel.

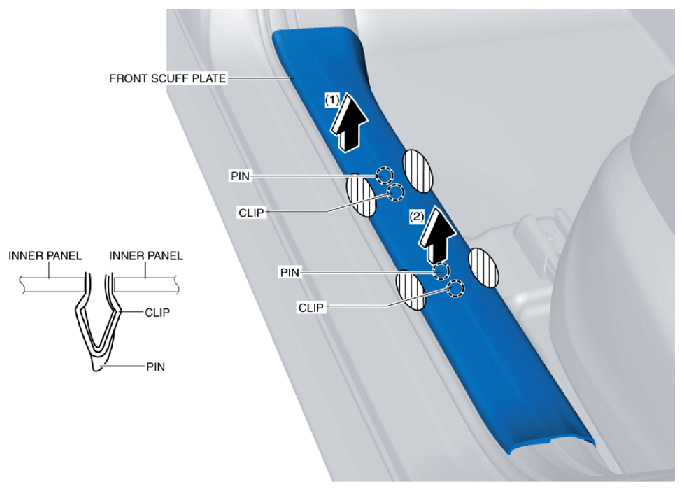

    Fig 3: Moving Front Scuff Plate
    G10914791Courtesy of ABLE BODY CORP.
  6. Hold the shaded area shown in the figure, move the front scuff plate in the direction of arrow (2), and detach the clips from the inner panel.
  7. Pull out the pins and remove the front scuff plate.
