Connector Disconnect Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

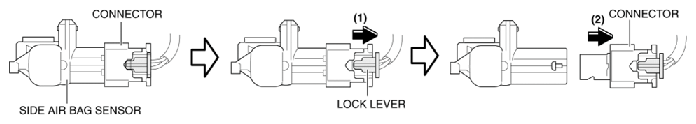

  1. Pull out the connector lock lever in the direction of arrow (1) shown in the figure.
    Fig 1: Pulling Out Connector Lock Lever
    G10910637Courtesy of MAZDA MOTORS CORP.
  2. Move the connector in the direction of arrow (2) shown in the figure to disconnect it.
