Clearance Inspection

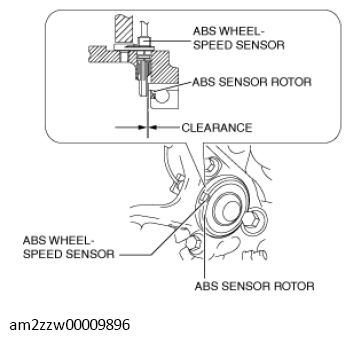

1. Measure the gap between the front ABS wheel-speed sensor and ABS sensor rotor using a feeler gauge.

Courtesy of MAZDA MOTORS CORP.

• If not within the specification, replace the front ABS wheel-speed sensor. (See FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION .)

Clearance

1.815-2.835 mm {0.0715-0.1116 in}
