Windshield Wiper Motor And Link Removal/Installation
>>
Ball Joint Assembly Note
Ball Joint Assembly Note

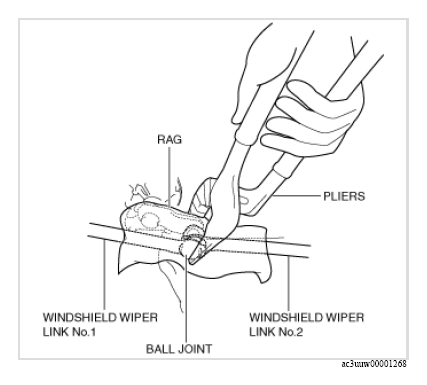

When assembling the ball joint, use a clean rag to protect the links, and squeeze using a pair of protective tape-wrapped pliers.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
