Ventilation Hose Installation Note
Install the ventilation hose as shown in the figure.

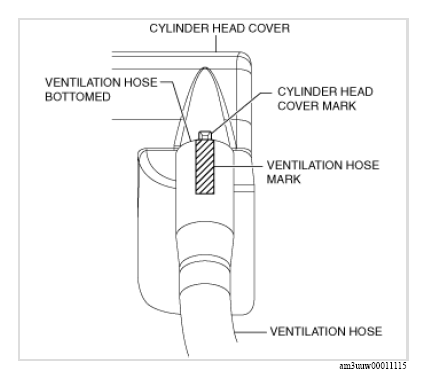

Cylinder head cover side
Courtesy of MAZDA MOTORS CORP.

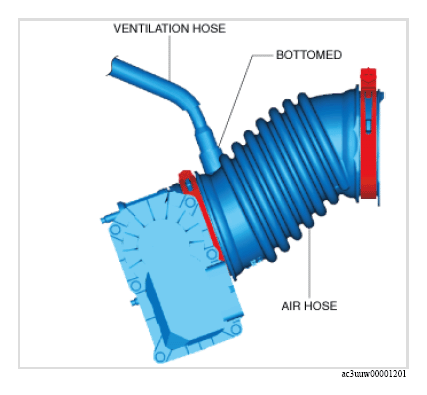

Air hose side
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
