Vacuum Hose Installation Note

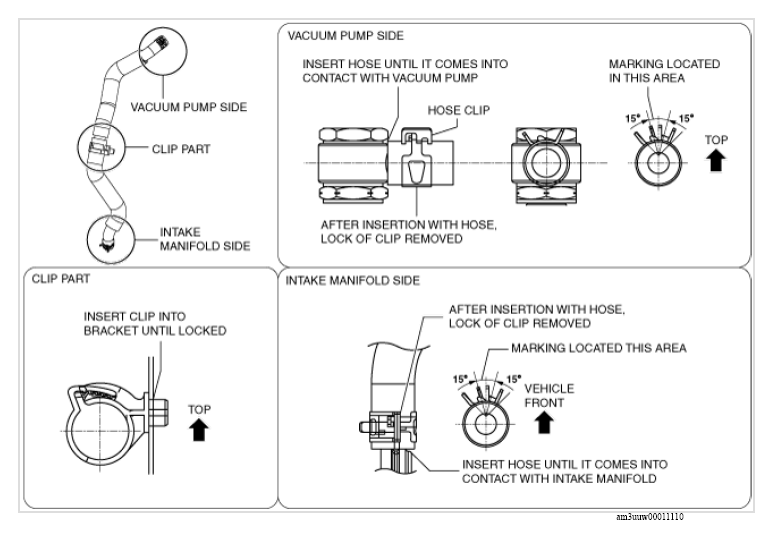

Install the vacuum hose as shown in the figure.

G13149381

Courtesy of MAZDA MOTORS CORP.
