Intake-Air System Removal/Installation
>>
Evaporative Hose Installation Note
Evaporative Hose Installation Note

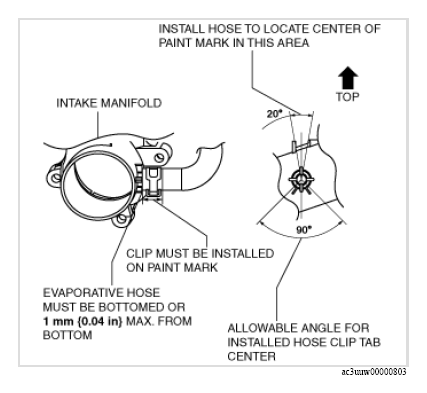

Install the evaporative hose as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
