No. 1 Engine Mount (2WD): Notes

  1. Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

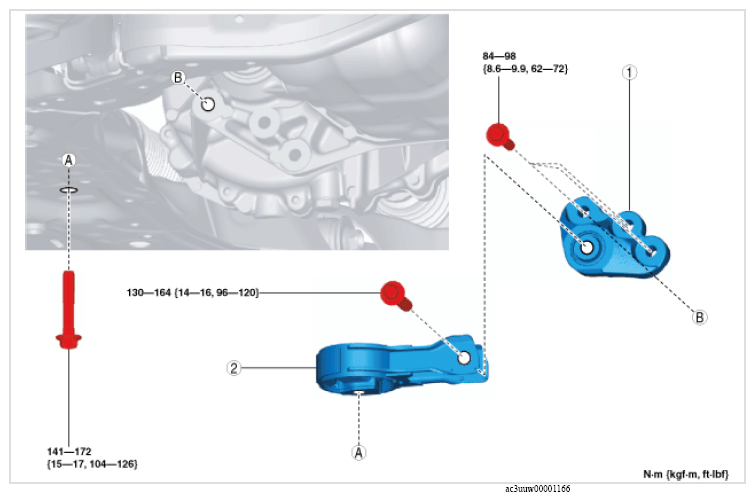

Fig 1: No. 1 Engine Mount (2WD) Components With Torque Specification
G13149106Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 No. 1 engine mount bracket
(See No. 1 engine mount installation note (2WD) .)
2 No. 1 engine mount rubber
(See No. 1 engine mount installation note (2WD) .)
