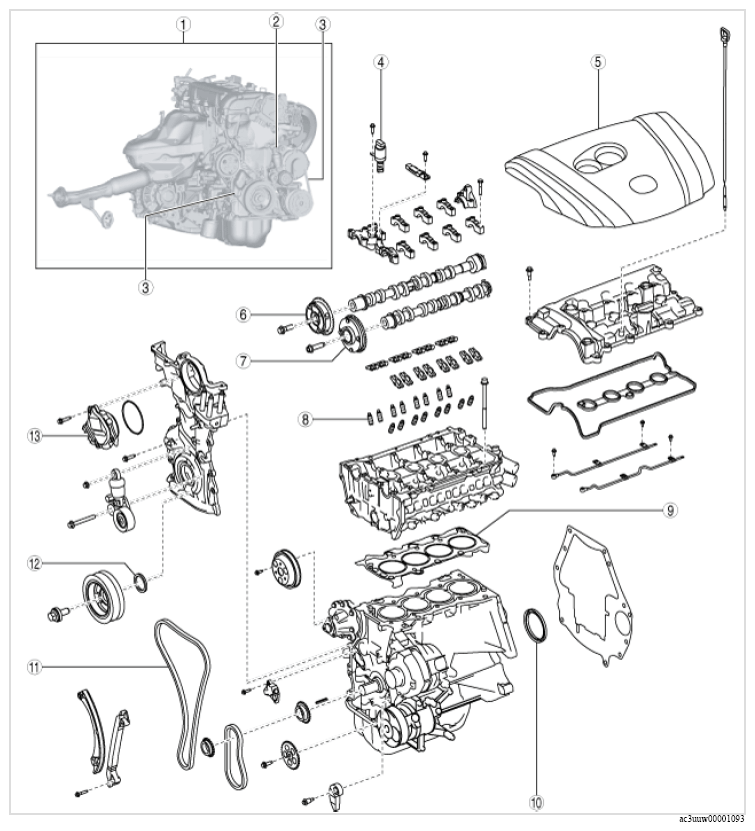

| 1 |
Engine
(See ENGINE TUNE-UP [SKYACTIV-G 2.0] .)
(See COMPRESSION INSPECTION [SKYACTIV-G 2.0] .)
(See ENGINE MOUNT DISASSEMBLY ASSEMBLY [SKYACTIV-G 2.0] .)
(See ENGINE REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
(See ENGINE DISASSEMBLY ASSEMBLY [SKYACTIV-G 2.0] .) |
| 2 |
Drive belt auto tensioner
(See DRIVE BELT AUTO TENSIONER INSPECTION [SKYACTIV-G 2.0] .)
(See DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .) |
| 3 |
Drive belt
(See DRIVE BELT INSPECTION [SKYACTIV-G 2.0] .)
(See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .) |
| 4 |
OCV
(See OIL CONTROL VALVE (OCV) INSPECTION [SKYACTIV-G 2.0] .)
(See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .) |
| 5 |
Plug hole plate
(See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .) |
| 6 |
Hydraulic variable valve timing actuator
(See HYDRAULIC VARIABLE VALVE TIMING ACTUATOR INSPECTION [SKYACTIV-G 2.0] .)
(See
ELECTRIC VARIABLE VALVE TIMING ACTUATOR, HYDRAULIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION .) |
| 7 |
Electric variable valve timing actuator
(See ELECTRIC VARIABLE VALVE TIMING ACTUATOR INSPECTION [SKYACTIV-G 2.0] .)
(See
ELECTRIC VARIABLE VALVE TIMING ACTUATOR, HYDRAULIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION .) |
| 8 |
HLA
(See HYDRAULIC LASH ADJUSTER (HLA) INSPECTION [SKYACTIV-G 2.0] .)
(See HYDRAULIC LASH ADJUSTER (HLA) REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .) |
| 9 |
Cylinder head gasket
(See CYLINDER HEAD GASKET REPLACEMENT [SKYACTIV-G 2.0] .) |
| 10 |
Rear oil seal
(See REAR OIL SEAL REPLACEMENT [SKYACTIV-G 2.0] .) |
| 11 |
Timing chain
(See TIMING CHAIN REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .) |
| 12 |
Front oil seal
(See FRONT OIL SEAL REPLACEMENT [SKYACTIV-G 2.0] .) |
| 13 |
Electric variable valve timing motor/driver
(See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER INSPECTION [SKYACTIV-G 2.0] .)
(See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .) |
