Brake Pipe Removal Note

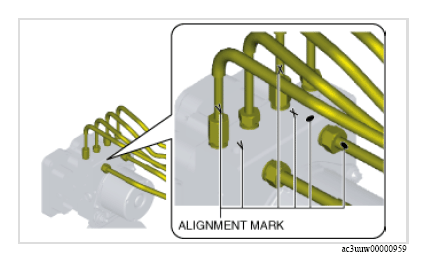

  1. Place an alignment marks on the brake pipe and DSC HU/CM.
    G13150387Courtesy of MAZDA MOTORS CORP.
  2. Apply protective tape to the connector to prevent brake fluid from entering.
  3. Disconnect the brake pipes.
