Body Control Module (BCM) Bracket Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Front scuff plate (LH). (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Front side trim (LH). (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
    4. Adaptive front lighting system (AFS) control module (with adaptive front lighting system (AFS)) (See ADAPTIVE FRONT LIGHTING SYSTEM (AFS) CONTROL MODULE REMOVAL/INSTALLATION .)
    5. BCM (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION .)
  3. Remove the bolt.

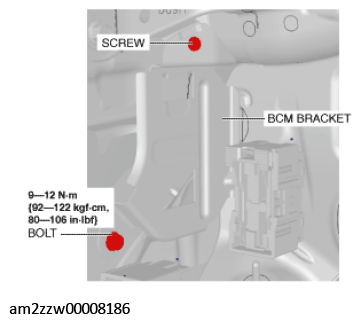

    Fig 1: Body Control Module (BCM) Bracket Bolt With Torque Specification
    G11433888Courtesy of MAZDA MOTORS CORP.
  4. Remove the screw.

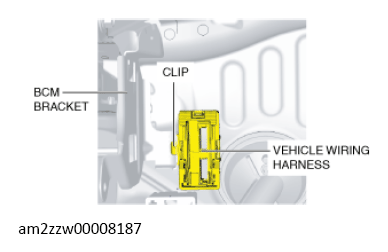

  5. Remove the vehicle wiring harness clip.
    G13153754Courtesy of MAZDA MOTORS CORP.
  6. Remove the BCM bracket.
  7. Install in the reverse order of removal.
