Rear Door Latch Switch Inspection

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
2. Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
3. Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
Verify that the continuity is as indicated in the table.

Fig 1: Rear Door Latch Switch Terminal Continuity Chart
Courtesy of MAZDA MOTORS CORP.

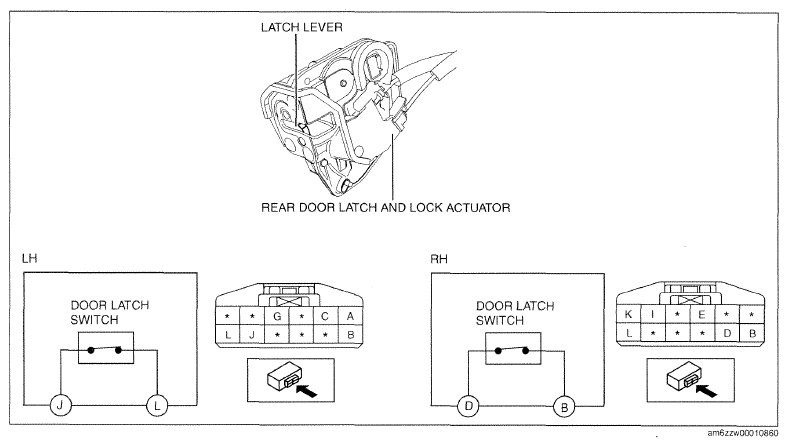

Fig 2: Checking Rear Door Latch Switch Terminal Continuity
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the rear door latch and lock actuator.
NOTE:
- When inspecting the latch side of the rear door latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.
Fig 3: Inspecting Latch Side Of Rear Door Latch Switch
Courtesy of MAZDA MOTORS CORP.
