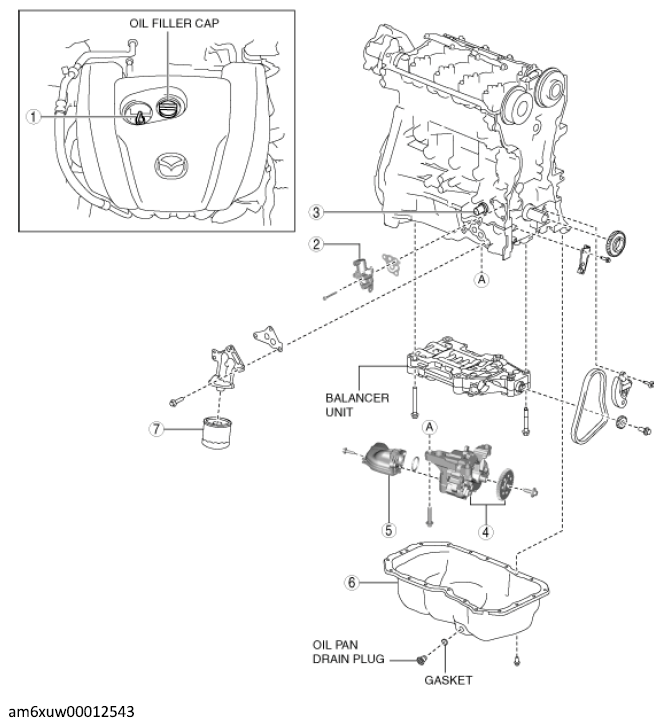

Lubrication System Location Index
LUBRICATION SYSTEM COMPONENT OPERATIONS
| Component No. | Refer to |
|---|---|
| 1 | Dipstick See ENGINE OIL LEVEL INSPECTION See ENGINE OIL REPLACEMENT |
| 2 | Engine Oil Solenoid Valve See ENGINE OIL SOLENOID VALVE REMOVAL/INSTALLATION See ENGINE OIL SOLENOID VALVE INSPECTION |
| 3 | Engine Oil Temperature Sensor/Engine Oil Pressure Sensor See OIL PRESSURE INSPECTION |
| 4 | Oil Pump Component See OIL PUMP REMOVAL/INSTALLATION |
| 5 | Oil Strainer See OIL PUMP REMOVAL/INSTALLATION |
| 6 | Oil Pan See OIL PAN REMOVAL/INSTALLATION |
| 7 | Oil Filter See OIL FILTER REPLACEMENT |
