Structural View

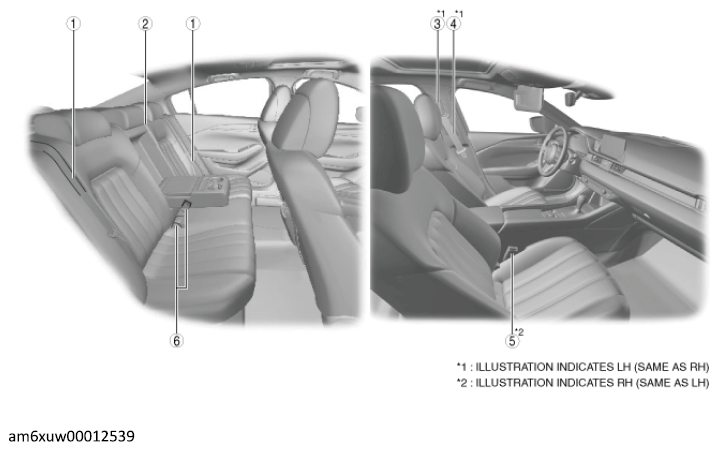

Fig 1: Structural View Of Seat Belt Components Location

G12233885

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rear seat belt (See REAR SEAT BELT REMOVAL/INSTALLATION .) (See SEAT BELT INSPECTION .)
2	Rear center seat belt (See REAR CENTER SEAT BELT REMOVAL/INSTALLATION .) (See SEAT BELT INSPECTION .)
3	Adjuster anchor (See ADJUSTER ANCHOR REMOVAL/INSTALLATION .)
4	Front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .) (See SEAT BELT INSPECTION .)
5	Front buckle (See FRONT BUCKLE REMOVAL/INSTALLATION .) (See BUCKLE SWITCH INSPECTION .)
6	Rear buckle (See REAR BUCKLE REMOVAL/INSTALLATION .) (See BUCKLE SWITCH INSPECTION .)

SEAT BELT COMPONENT OPERATIONS

Component No.	Refer to
1	See REAR SEAT BELT REMOVAL/INSTALLATION See SEAT BELT INSPECTION
2	See REAR CENTER SEAT BELT REMOVAL/INSTALLATION See SEAT BELT INSPECTION
3	See ADJUSTER ANCHOR REMOVAL/INSTALLATION
4	See FRONT SEAT BELT REMOVAL/INSTALLATION See SEAT BELT INSPECTION
5	See FRONT BUCKLE REMOVAL/INSTALLATION See BUCKLE SWITCH INSPECTION
6	See REAR BUCKLE REMOVAL/INSTALLATION See BUCKLE SWITCH INSPECTION
