Ventilation Hose Installation Note

WARNING: This page is about a different variant/trim than selected.

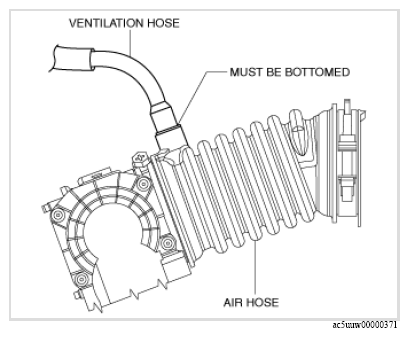

  1. Connect the ventilation hose as shown in the figure.
    G13108276Courtesy of MAZDA MOTORS CORP.
