Side Bearing Disassembly Note
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- Mark or otherwise distinguish between the left and right side bearings so that they are not mixed up at the time of reassembly.

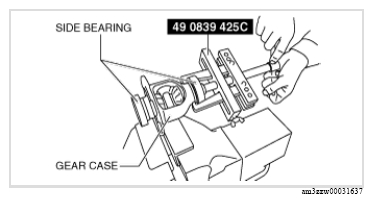

- Remove the side bearing inner races from the gear case using the SST.
 Courtesy of MAZDA MOTORS CORP.
|
