Rear Differential Component Disassembly Note

WARNING: This page is about a different variant/trim than selected.

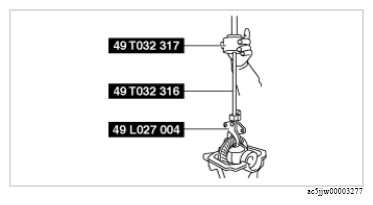

  1. If the rear differential component cannot be removed by hand, remove the rear differential component using the SSTs.
    G13175881Courtesy of MAZDA MOTORS CORP.
  2. Mark or otherwise distinguish between the removed left and right adjusting shims, spacers and side bearing outer races so that they are not mixed up at the time of reassembly.
