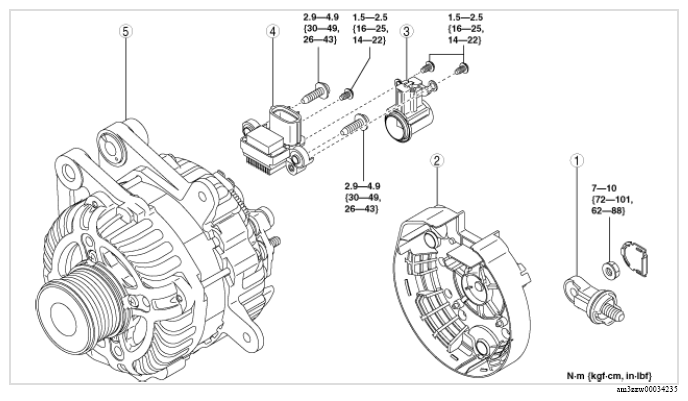

Generator Disassembly/Assembly (VIN M)
- Disassemble in the order indicated in the table.
- Assemble in the reverse order of disassembly.
Courtesy of MAZDA MOTORS CORP. COMPONENT DESCRIPTION
| 1 |
Terminal B component |
| 2 |
Rear cover |
| 3 |
Brush holder |
| 4 |
Regulator assy |
| 5 |
Generator |
