Accelerator Pedal Removal/Installation

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
Remove in the order indicated in the table.

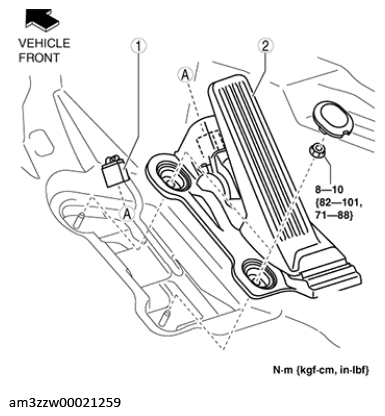

Fig 1: Accelerator Pedal Components With Torque Specification
Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 APR sensor connector

2 Accelerator pedal
Install in the reverse order of removal.

1	APR sensor connector
2	Accelerator pedal
