Intake Manifold Removal Note

WARNING: This page is about a different variant/trim than selected.

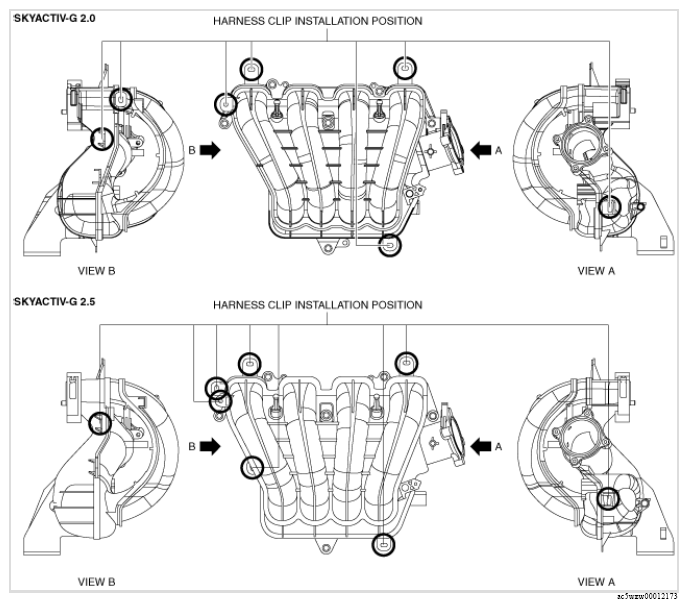

  1. Disconnect the harness clip from the intake manifold as shown in the figure.
    G13174895Courtesy of MAZDA MOTORS CORP.
  2. Remove the intake manifold.
