Insulator (Rear) Installation Note
Insulator (Rear) Installation Note

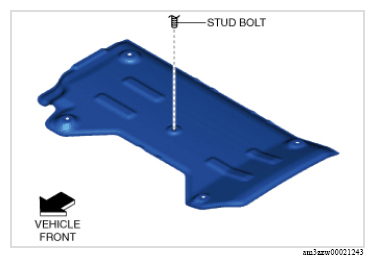

Align the stud bolt shown in the figure with the insulator (rear) and install.
Courtesy of MAZDA MOTORS CORP.
Tighten the nuts to the specified torque.
Courtesy of MAZDA MOTORS CORP.
