Exhaust Manifold Installation Note

  1. Temporarily tighten the exhaust manifold installation nuts (1) and (2) shown in the figure by hand.
    G09074419Courtesy of MAZDA MOTORS CORP.
  2. Tighten the exhaust manifold installation nuts (1) and (2) shown in the figure.

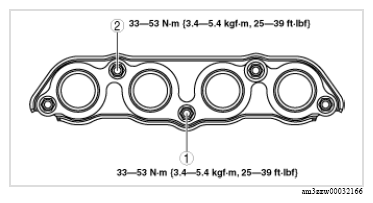

    Fig 1: Exhaust Manifold Installation Nuts With Torque Specification
    G13175111Courtesy of MAZDA MOTORS CORP.
  3. Temporarily tighten the exhaust manifold installation nuts (3) to (5) shown in the figure by hand.
    G09074420Courtesy of MAZDA MOTORS CORP.
  4. Tighten the exhaust manifold installation nuts (3) to (5) shown in the figure.
  5. Tighten the exhaust manifold installation nuts (1) and (2) shown in the figure.
  6. Temporarily tighten the bolts (6) and (7) shown in the figure.

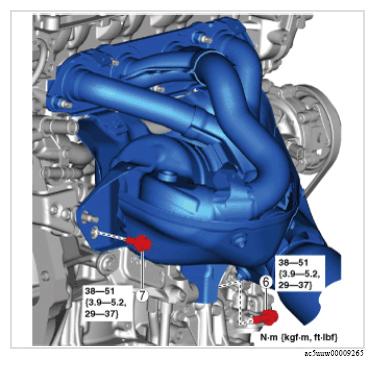

    Fig 2: Exhaust Manifold Bolts With Torque Specification
    G13175113Courtesy of MAZDA MOTORS CORP.
  7. Tighten the bolt (6) shown in the figure.
  8. Tighten the bolt (7) shown in the figure.
  9. Install the front crossmember. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [(US)] .)
