Mass Air Flow (MAF) Sensor/Intake Air Temperature (IAT) Sensor No. 1 Removal/Installation

NOTE:

Because the IAT sensor No. 1 is integrated in the MAF sensor, replacing the IAT sensor No. 1 includes replacement of the MAF sensor/IAT sensor No. 1.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
Disconnect the MAF sensor/IAT sensor No. 1 connector.

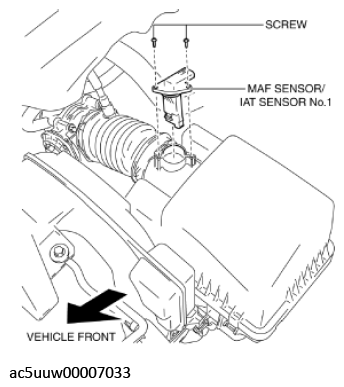

Remove the MAF sensor/IAT sensor No. 1.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
