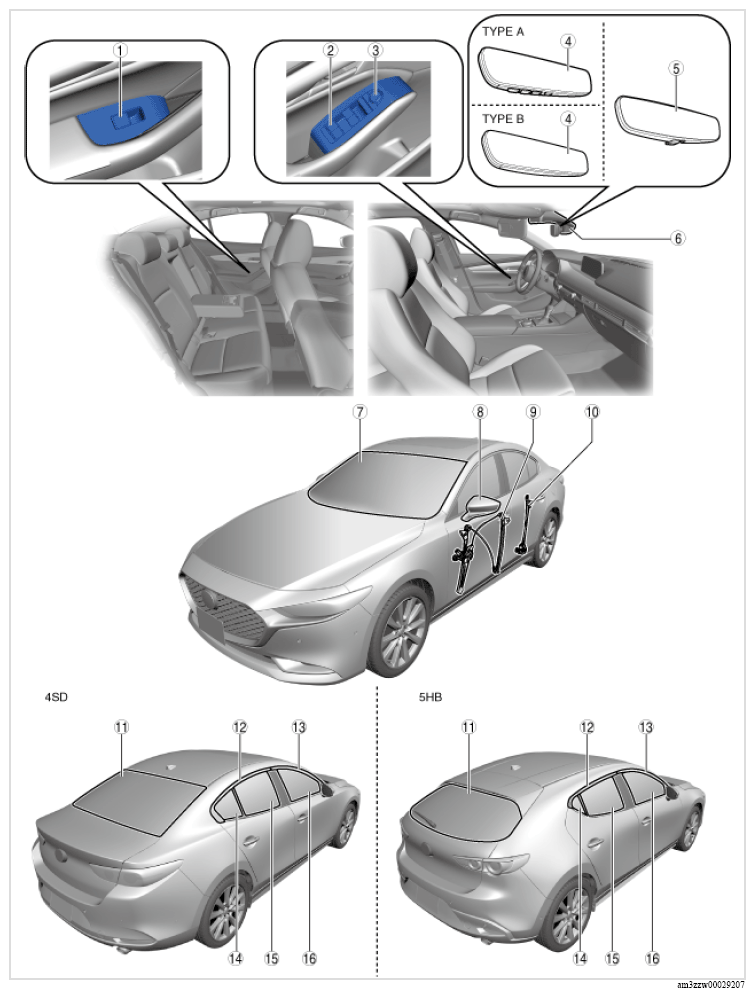

| 1 |
Power window subswitch
(See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
(See POWER WINDOW SUBSWITCH INSPECTION .)
(See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .) |
| 2 |
Power window main switch
(See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
(See POWER WINDOW MAIN SWITCH INSPECTION [(US)] .)
(See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .) |
| 3 |
Power outer mirror switch
(See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION .)
(See POWER OUTER MIRROR SWITCH INSPECTION ) |
| 4 |
Auto-dimming rearview mirror (with auto-dimming rearview mirror)
(See AUTO-DIMMING REARVIEW MIRROR REMOVAL/INSTALLATION .)
(See AUTO-DIMMING REARVIEW MIRROR INSPECTION [(US)] .) |
| 5 |
Rearview mirror (without auto-dimming rearview mirror)
(See REARVIEW MIRROR REMOVAL/INSTALLATION ) |
| 6 |
Sensor cover
(See SENSOR COVER REMOVAL/INSTALLATION .) |
| 7 |
Windshield
(See WINDSHIELD REMOVAL [(US)] .)
(See WINDSHIELD INSTALLATION [(US)] .)
(See WINDSHIELD WIPER DE-ICER INSPECTION [(US)] .) |
| 8 |
Power outer mirror
(See POWER OUTER MIRROR REMOVAL/INSTALLATION )
(See POWER OUTER MIRROR INSPECTION .)
(See OUTER MIRROR GLASS REMOVAL .)
(See OUTER MIRROR GLASS INSTALLATION )
(See OUTER MIRROR GLASS INSPECTION .)
(See OUTER MIRROR GARNISH REMOVAL/INSTALLATION [(US)] .) |
| 9 |
Front power window regulator
(See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION .)
(See FRONT POWER WINDOW MOTOR INSPECTION .) |
| 10 |
Rear power window regulator
(See REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION .)
(See REAR POWER WINDOW MOTOR INSPECTION ) |
| 11 |
Rear window glass
(See REAR WINDOW GLASS REMOVAL .)
(See REAR WINDOW GLASS INSTALLATION .)
(See REAR WINDOW DEFOGGER INSPECTION .)
(See
REAR WINDOW DEFOGGER/GLASS ANTENNA REPAIR .) |
| 12 |
Rear door glass run-channel
(See REAR DOOR GLASS RUN-CHANNEL REMOVAL/INSTALLATION [(US)] .) |
| 13 |
Front door glass run-channel
(See FRONT DOOR GLASS RUN-CHANNEL REMOVAL/INSTALLATION [(US)] .) |
| 14 |
Rear door quarter glass
(See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION ) |
| 15 |
Rear door glass
(See REAR DOOR GLASS REMOVAL/INSTALLATION .) |
| 16 |
Front door glass
(See FRONT DOOR GLASS REMOVAL/INSTALLATION .) |
