Assist Handle Removal/Installation: Removal

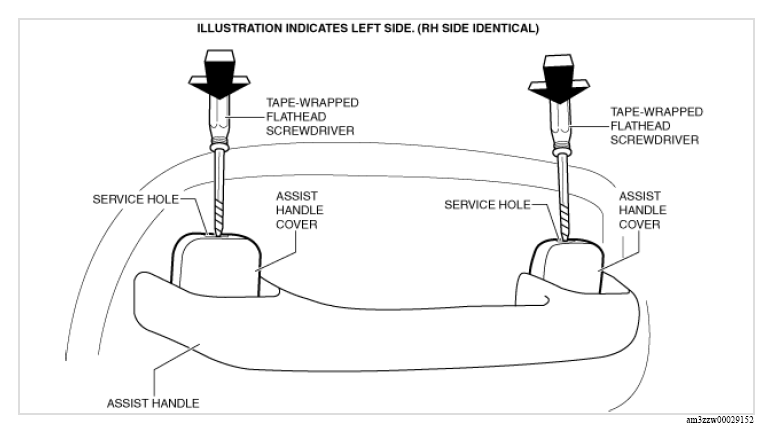

  1. Insert a tape-wrapped Flathead screwdriver into the service hole and remove the assist handle covers.
    G13179339Courtesy of MAZDA MOTORS CORP.

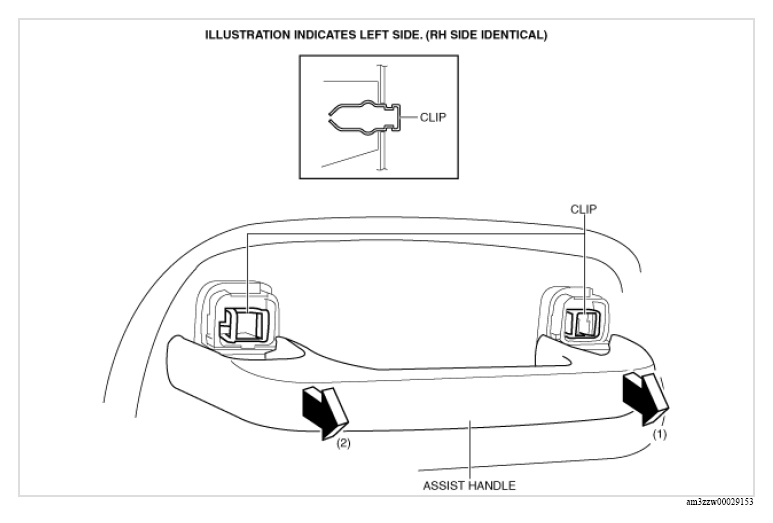

  2. Pull the assist handle in the order of arrows (1) and (2) shown in the figure and remove it while detaching the clips.
    G13179340Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Remove the assist handle by shaking it up and down.
