Shift-Lock Solenoid Inspection

NOTE:
  • The shift-lock solenoid is built into the selector lever component.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Selector lever knob (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .) (2) Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION .)
  3. Reconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  4. Verify that the voltages of each of the selector lever component terminals are as indicated in the table.

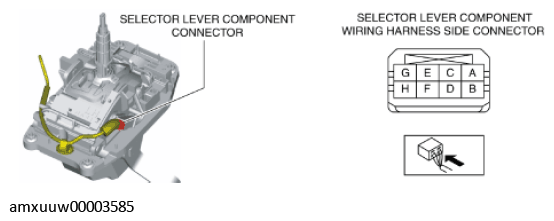

G11279404Courtesy of MAZDA MOTORS CORP.
