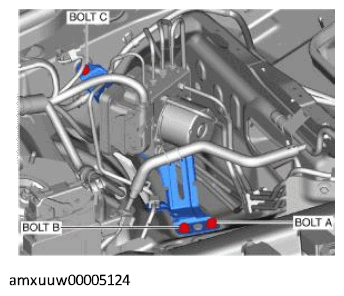

Bolt Installation Note
- Tighten the bolt A to the specified torque.
Tightening torque
19-25 N.m {2.0-2.5 kgf.m, 15-18 ft.lbf}
- Tighten the bolt B to the specified torque.
Tightening torque
19-25 N.m {2.0-2.5 kgf.m, 15-18 ft.lbf}
- Tighten the bolt C to the specified torque.
Tightening torque
19-25 N.m {2.0-2.5 kgf.m, 15-18 ft.lbf}
