Water Hose: Notes
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the air cleaner and air hose as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Remove the battery tray. (See BATTERY REMOVAL/INSTALLATION .)
- Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Add the engine coolant. (See ENGINE COOLANT REPLACEMENT .)

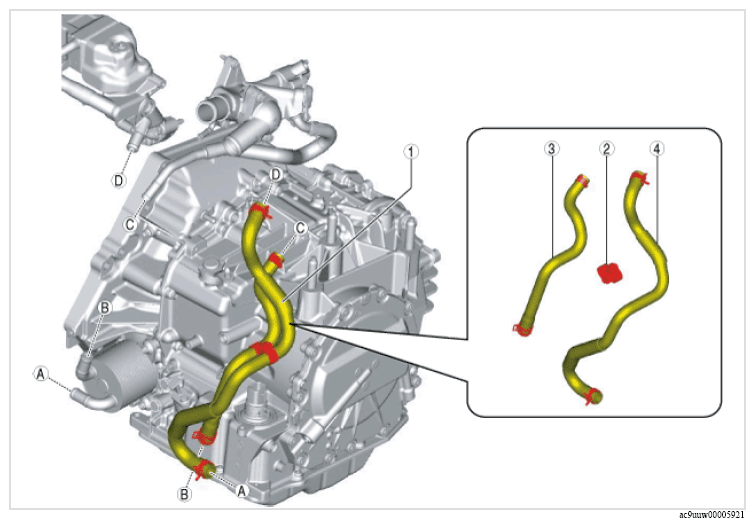

COMPONENT DESCRIPTION
| 1 | Water hose component (See Water hose No. 1 and No. 2 (oil cooler side) installation note .) (See Water hose No. 1 (water pipe side) installation note .) (See Water hose No. 2 (water pipe side) installation note .) |
| 2 | Hose clip |
| 3 | Water hose No. 1 (See Water hose No. 1 and No. 2 (oil cooler side) installation note .) (See Water hose No. 1 (water pipe side) installation note .) |
| 4 | Water hose No. 2 (See Water hose No. 1 and No. 2 (oil cooler side) installation note .) (See Water hose No. 2 (water pipe side) installation note .) |
