Rear Oil Seal Replacement: Notes

Special Service Tool (SST)


  1. Mazda SST number
  2. Global SST number

  1. 49 S033 101
  2. - Dust cover installer
G13444657Courtesy of MAZDA MOTORS CORP.
  1. Remove the transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6A-EL] (2WD).) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6AX-EL] (AWD).)
  2. Remove the drive plate. (See DRIVE PLATE REMOVAL/INSTALLATION [GW6A-EL, GW6AX-EL] .)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

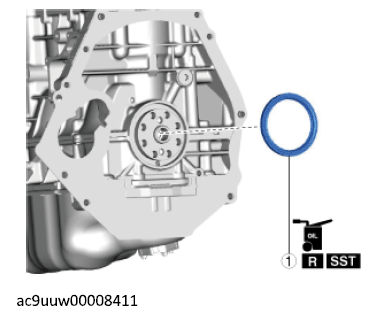

G12228135Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Rear oil seal
(See Rear Oil Seal Removal Note .)
(See Rear Oil Seal Installation Note .)
