EGR Cooler Inspection

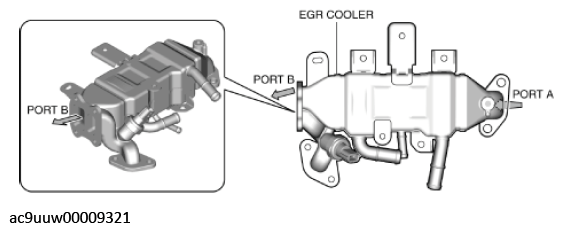

  1. Verify that there is airflow from port B when pressure is applied from port A.
    G11436243Courtesy of MAZDA MOTORS CORP.

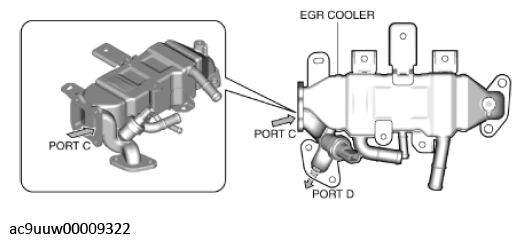

  2. Verify that there is airflow from port D when pressure is applied from port C.
    G11436244Courtesy of MAZDA MOTORS CORP.
