Rear Console

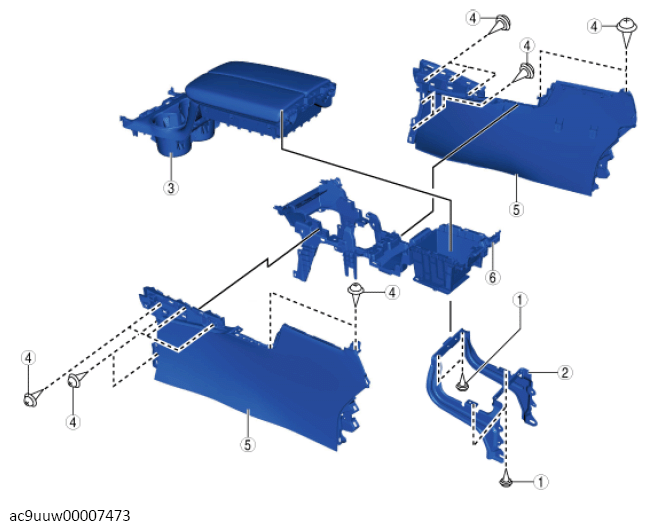

  1. Disassemble in the order indicated in the table.
    G13450617Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Screw A
    2 Rear console bracket
    3 Console lid
    4 Screw B
    5 Side panel
    (See Side Panel Removal Note .)
    6 Rear console box
  2. Assemble in the reverse order of disassembly.
