Rear Door Lock-Link Switch Inspection

Rear Door Lock-link Inspection

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the following parts:
   1. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
   2. Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
   3. Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)

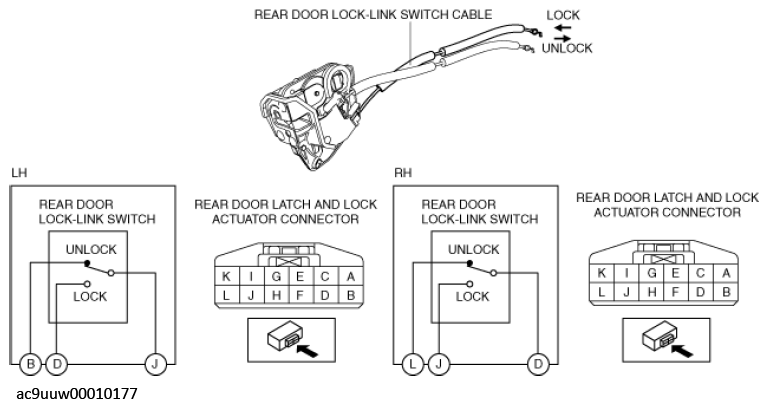

3. If the door lock condition is to be inspected, pull the door lock-link switch cable, or press it in.

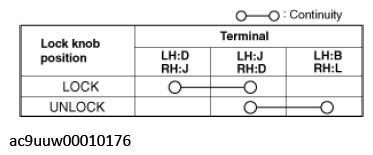

4. Verify that the continuity is as indicated in the table.

   Courtesy of MAZDA MOTORS CORP.

   Courtesy of MAZDA MOTORS CORP.

   • If not as indicated in the table, replace the rear door latch and lock actuator. (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
