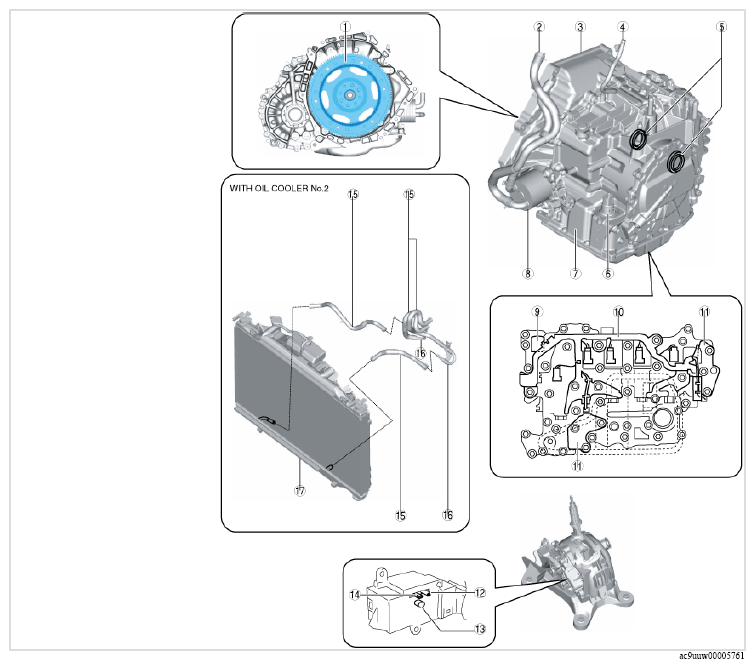

| 1 |
Drive plate
(See
DRIVE PLATE REMOVAL/INSTALLATION .) |
| 2 |
Water hose
(See
OIL COOLER REMOVAL/INSTALLATION .) |
| 3 |
Automatic transaxle
(See
MECHANICAL SYSTEM TEST .)
(See
ROAD TEST )
(See
AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION .)
(See
AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
(See
AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT .
(See
INITIAL LEARNING .)
(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6A-EL] .)
(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6AX-EL] .) |
| 4 |
Breather hose
(See
AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6A-EL] .)
(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [GW6AX-EL] .) |
| 5 |
Oil seal (differential)
(See
OIL SEAL (DIFFERENTIAL) REPLACEMENT .) |
| 6 |
Oil seal (control valve body)
(See
OIL SEAL (CONTROL VALVE BODY) REPLACEMENT .) |
| 7 |
Control valve body
(See
CONTROL VALVE BODY REMOVAL/INSTALLATION .)
(See
TCM CONFIGURATION .) |
| 8 |
Oil cooler
(See
OIL COOLER REMOVAL/INSTALLATION ) |
| 9 |
ON/OFF solenoid
(See
ON/OFF SOLENOID REMOVAL/INSTALLATION .) |
| 10 |
Coupler component
(See
COUPLER COMPONENT REMOVAL/INSTALLATION .) |
| 11 |
Oil pressure switch
(See
OIL PRESSURE SWITCH REMOVAL/INSTALLATION . |
| 12 |
Down switch
(See
DOWN SWITCH INSPECTION .
(See
DOWN SWITCH REMOVAL/INSTALLATION . |
| 13 |
M position switch
(See
M POSITION SWITCH INSPECTION .
(See
M POSITION SWITCH REMOVAL/INSTALLATION .) |
| 14 |
Up switch
(See
UP SWITCH INSPECTION .)
(See
UP SWITCH REMOVAL/INSTALLATION .) |
| 15 |
Oil hose
(See
OIL COOLER REMOVAL/INSTALLATION .) |
| 16 |
Oil pipe
(See
OIL COOLER REMOVAL/INSTALLATION .) |
| 17 |
Oil cooler No. 2
(See
OIL COOLER REMOVAL/INSTALLATION .) |
