Auto-stop Operation Inspection

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
Disconnect the connector.

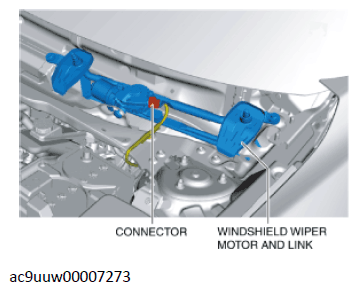

Fig 1: Locating Windshield Wiper Motor Connector
Courtesy of MAZDA MOTORS CORP.
Connect the battery voltage to windshield wiper motor terminal A, connect the ground to terminal D, and operate the windshield wiper motor at low speed.

Fig 2: Connecting Battery Voltage To Windshield Wiper Motor Terminal A
Courtesy of MAZDA MOTORS CORP.
Disconnect the battery voltage from terminal A during windshield wiper low operation, and stop the windshield wiper motor mid-way.
Connect windshield wiper motor terminals A and E using a jumper wire.

Fig 3: Connecting Windshield Wiper Motor Terminals A And E
Courtesy of MAZDA MOTORS CORP.
Connect the battery positive voltage to windshield wiper motor terminal C.
Verify that the windshield wipers stop at the park position as a result of the auto-stop operating.
- If the windshield wipers do not stop at the park position, replace the windshield wiper motor. (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION .)
