Rear Door Checker Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fully close the rear door glass.
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
  4. Remove the rear door speaker. (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)
  5. Remove the bolt.

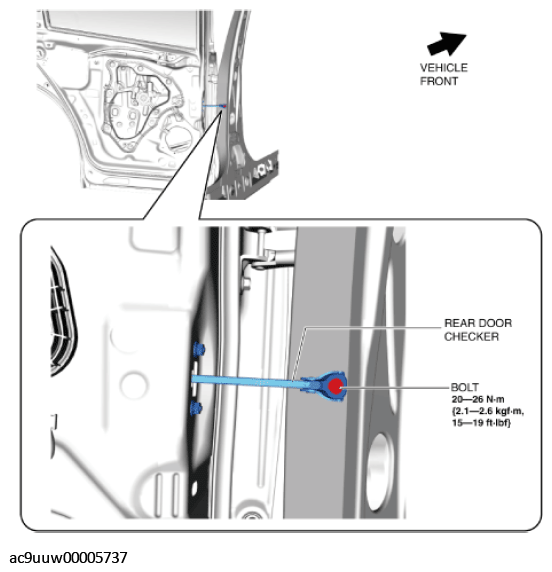

    Fig 1: Rear Door Checker And Bolt With Torque Specification
    G11430938Courtesy of MAZDA MOTORS CORP.
  6. Remove the nuts.

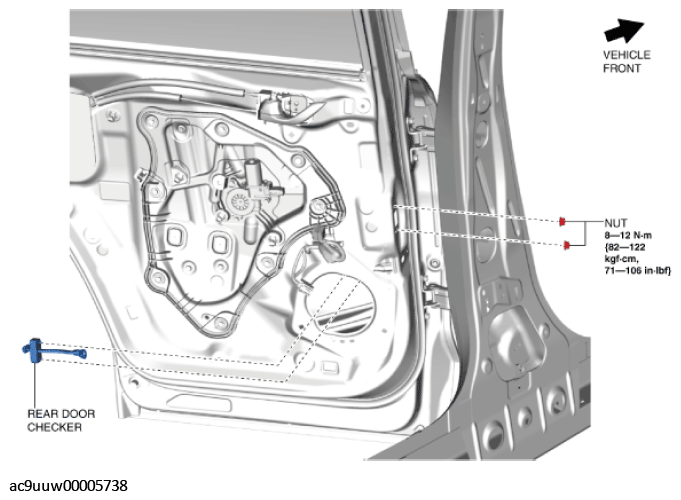

    Fig 2: Rear Door Checker And Nuts With Torque Specification
    G11430939Courtesy of MAZDA MOTORS CORP.
  7. Pull out the rear door checker from the rear door speaker installation hole.
  8. Install in the reverse order of removal.
