Exhaust System Removal/Installation (AWD): Notes

  1. Disconnect the negative battery terminal. (See REQUIRED PROCEDURE AFTER NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove in the order indicated in the table.
  3. Remove the insulator. (See EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION (2WD) .)
  4. Install in the reverse order of removal.

    Step 1

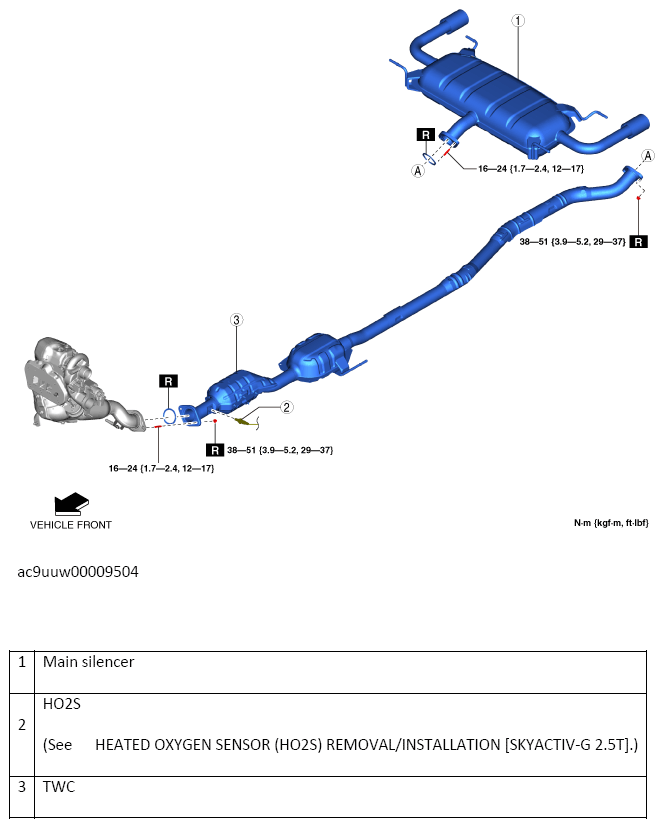

Fig 1: Exhaust System Components With Torque Specification (Step 1; AWD)
G13444994Courtesy of MAZDA MOTORS CORP.

Step 2

Fig 2: Exhaust System Components With Torque Specification (Step 2; AWD)
G13444981Courtesy of MAZDA MOTORS CORP.
